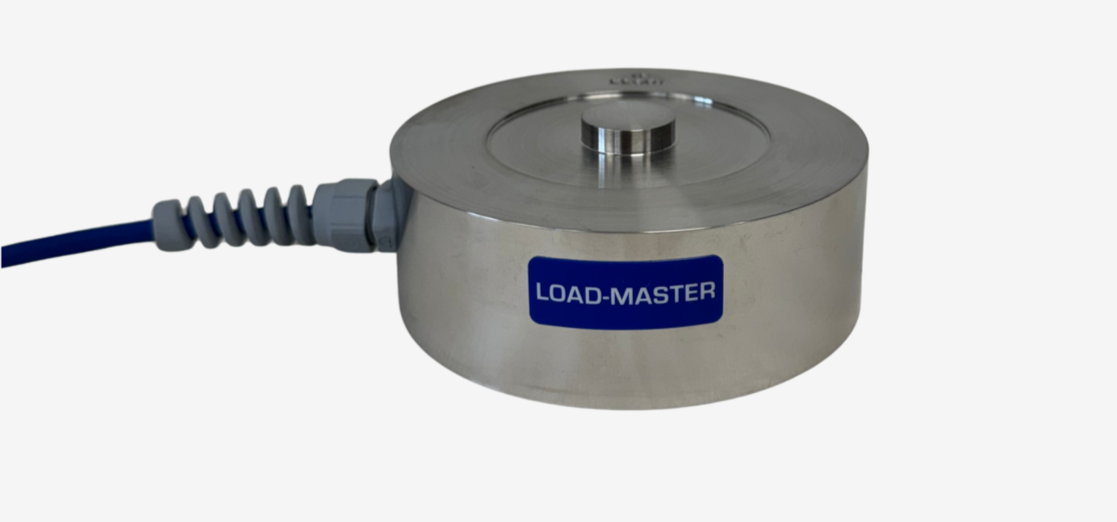

The CDH1 is a lightweight, low-profile compression load cell designed to provide accurate and portable force measurement across a wide range of industrial applications.

Its disc-type construction makes it particularly suited to jacking, lifting, structural proof testing, press calibration, and industrial weighing. The low-profile form factor allows reliable measurement in confined spaces where height is limited.

The central domed loading boss ensures consistent load transfer through the sensor body, supporting dependable measurement when used with an appropriate flat, rigid bearing surface. The unit can be mounted in either orientation to suit operational requirements.

Key Features

• Low-profile, lightweight design for use in restricted headroom applications

• Precision-engineered for accurate compression force measurement

• Domed loading surface for reliable and consistent load transfer

• Suitable for lifting, jacking, proof testing, press calibration, and weighing

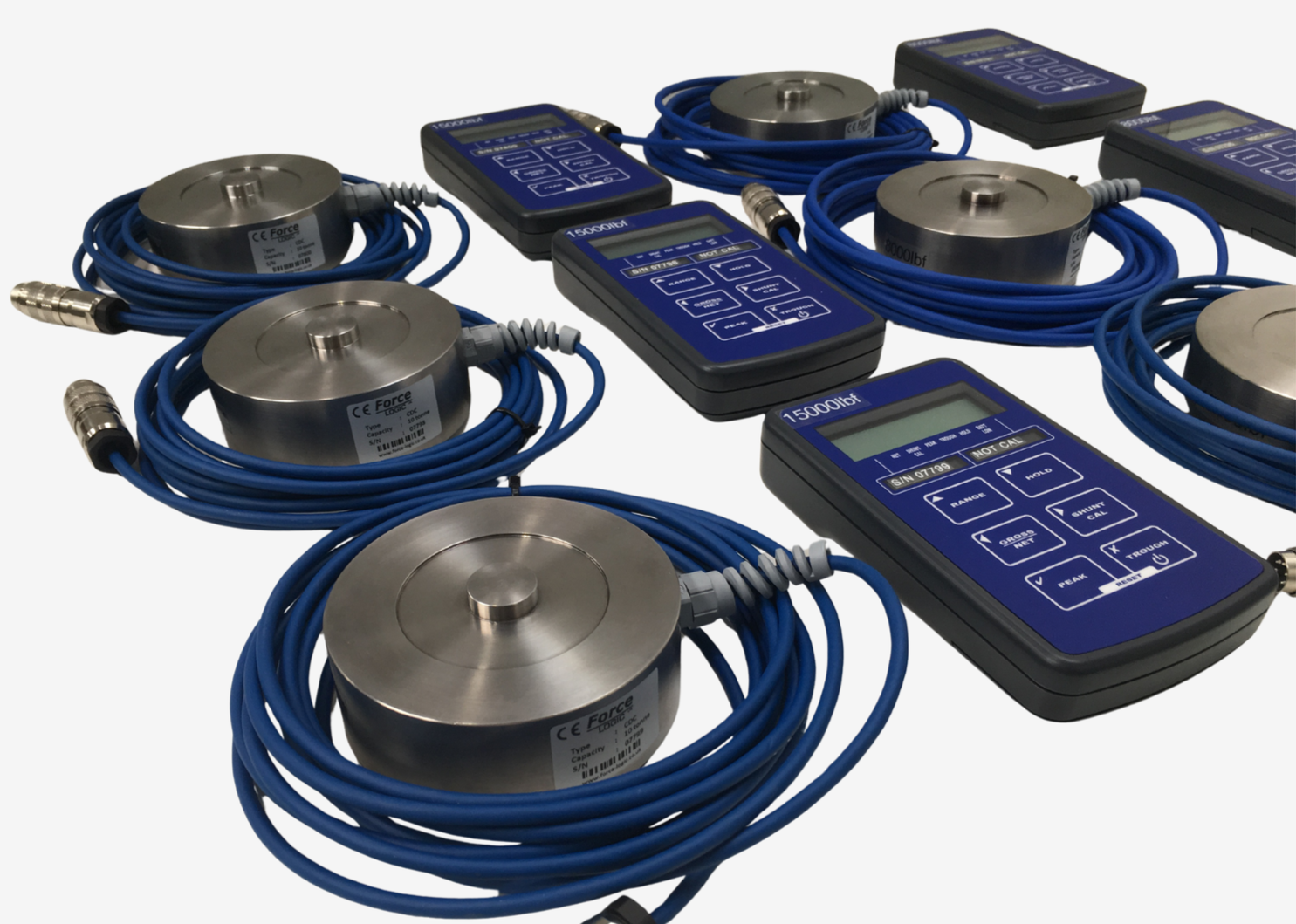

• Supplied with a professional handheld display featuring tare and peak capture

Typical Applications

• Jacking and lifting operations

• Structural proof load testing

• Press calibration and verification

• Industrial weighing and load verification

• Machinery installation and maintenance
